Mitsubishi 6D22 Turbocharger Parts

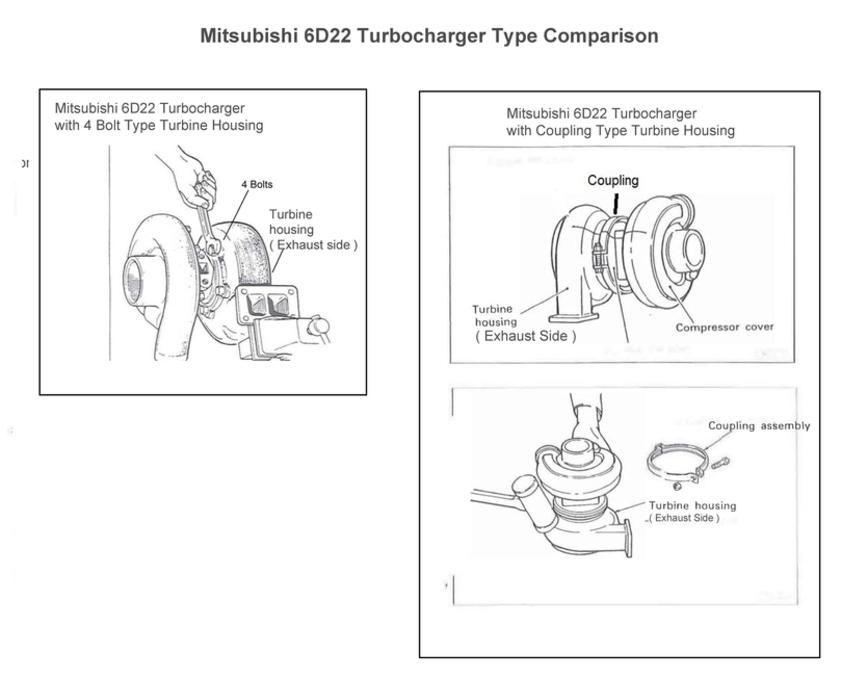

For coupling type turbine housing

ME719837 Compressor Housing
ME719843 Compressor Wheel
ME719833 Insert
ME719830 Housing
ME719829 Retainer Ring
ME719810 Coupling
ME719811 Plate, Turbine Back Plate
ME719756 Shaft and Turbine
ME719898 Turbine Housing, coupling type.
ME977020 Sealing washers, Oil feed line
ME977029 Gasket, Oil return line
ME980061 Gasket, turbo mounting gasket.
ME968607 Turbocharger Rebuild Kit
Includes:
      (1) 12778  Lock Nut
      (1) 12769 Snap Ring ME719828
      (1) 12796 Oring
      (1) 12525 Oil Deflector
      (1) 12597 Ring, Shaft Turbine Piston Ring
      (1) 12766  Sleeve
      (1) 12504 Thrust Bearing
      (1) 12596 Ring
      (1) 12503 Bearing
      (1) 12769D Snap Ring
      (1) 12769C Oring
      (1) 12769D Snap Ring
      (1) 12503 Bearing
      (1) 12597D Ring, Shaft Turbine Piston Ring
      (2)  ME977020 Sealing washers, Oil feed line
      (1)  ME977029 Gasket, Oil return line
      (1)  ME980061 Gasket, turbo mounting gasket.

Mitsubishi 6D22 6D22T Turbocharger Parts

Click here to view or print the Mitsubishi 6D22 Turbocharger Manual


Mitsubishi 6D22 6D22T Turbocharger Parts

New Mitsubishi 6D22 6D22T engine parts  for heavy equipment, excavators, cranes, pile drivers, earth drills, rock drills, wheel loaders, air compressors, generators, tracked carriers, power units, trucks, marine propulsion, marine generators, etc.

Located in USA, Engine parts delivery in USA including Hawaii & Alaska, Canada and worldwide.

Email Contact:  EngineParts@HeavyEquipmentRestorationParts.com
Phone: 269 673 1638
Fax 269 673 7226
Text messages: 269 760 8652

Heavy Equipment Restoration Parts LLC
4730 118th Ave
Fennville Michigan 49408 USA

Website: www.HeavyEquipmentRestorationParts.com




Mitsubishi 6D22 Turbocharger Parts
for 4 bolt type turbine housing

ME719370 Compressor Housing
ME719360 Compressor Wheel
ME719338 Insert
ME719340 Housing
ME719323 Plate, Turbine Back Plate
ME719350 Shaft and Turbine
ME719300 Turbine Housing, 4 bolt type.
ME977020 Sealing washers, Oil feed line
ME977029 Gasket, Oil return line
ME980061 Gasket, turbo mounting gasket.
ME968559 Turbocharger Rebuild Kit
Includes:
     (4) 12799G Plate, Clamp
     (8) 12798B Bolt
     (1) 12778 Lock Nut
     (1) 12769 Snap Ring
     (1) 12796 Oring
     (2) 12597B Piston Ring for turbine shaft
     (1)  12525 Oil Defector
     (1)  12766 Thrust Sleeve
     (1)  12504 Thrust Bearing
     (1)  12593 Thrust Ring
     (1)  12503 Bearing
     (1)  12784G Gasket
     (1)  12597 Turbine Shaft Piston Ring
     (2) 12799H  Lock Plate
     (2)  12574 Lock Plate
     (4)  12767  Bolt
     (2)  ME977020 Sealing washers, Oil feed line
     (1)  ME977029 Gasket, Oil return line
     (1)  ME980061 Gasket, turbo mounting gasket.

Mitsubishi 6D22 6D22T Turbocharger Parts
